OMEGADRILL- tHE mACHINIST'S CHOICE FOR rEMOVING BROKEN tAPS!
Features:
- Removes even the most stubborn broken tap.
- Micro-Grain Carbide grade with advanced drill body and point geometry.
- Works on spiral flute, straight flute, and even forming taps, making it an essential tap remover and tap extractor for precision machining.
Travers Tool Order #15-937-004
How to Use OMEGADRILL to Remove a Broken Tap:
Step #1:
While wearing safety glasses, remove as many chips and broken tap fragments as possible using a scriber, the picks and pin vise supplied with your Omegadrill set, or a blast of compressed air. Aim for as flat a surface as possible for the Omega Drill to drill into.

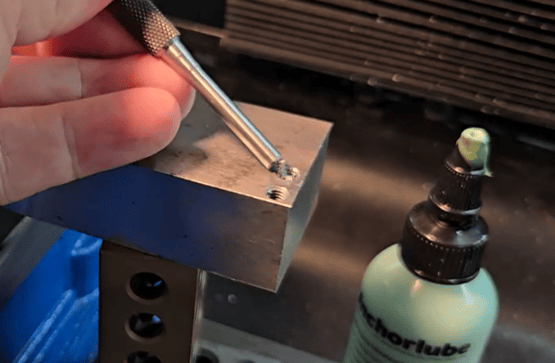

Using a Drive Pin Punch to break off high spots:

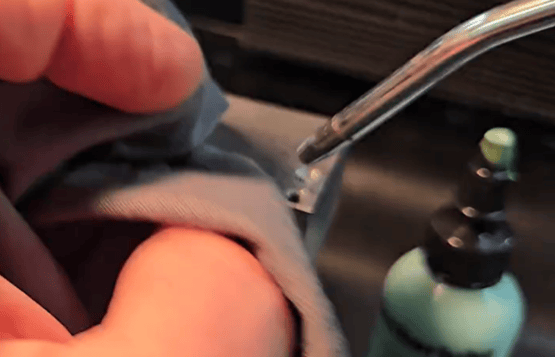

Using an Air Gun and a Shop Rag to blow the chips out:
Step #2:
Secure the workpiece in a vise or clamp it firmly to the table of a drill press or milling machine. Install the recommended size Omega Drill in the machine’s drill chuck or a collet.
The Omega Drill is in the drill chuck:
Step #3:
Run the machine at 1,200–2,500 RPM. Drill dry or use straight cutting oil—never coolant. Peck drill through the broken tap, clearing chips frequently, and apply light quill feed pressure for efficient tap removal.

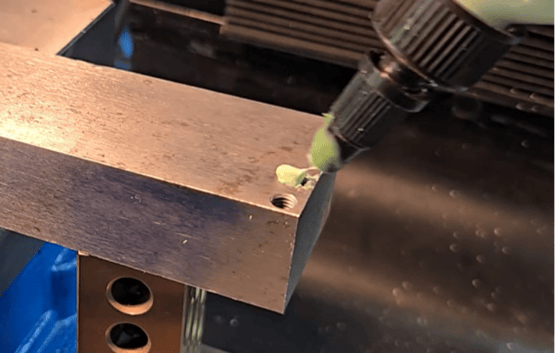

Apply Cutting Oil as needed:
Step #4:

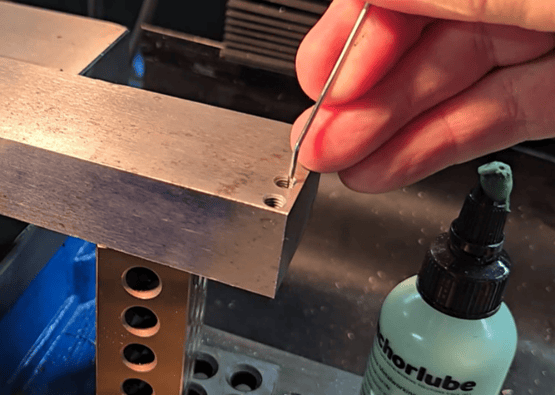

Digging out the fragments with the supplied picks and pin vise:
Pro-Tips:
- As always, wear safety glasses, avoid wearing long loose sleeves, and remove rings, watches, or other jewelry.
- When using compressed air, cover the workpiece and air gun with a rag to catch flying chips.
Omegadrill Size Guide for Tap Removal
- For Tap Sizes #4, #5, #6, M3, M3.5, use the 5/64” (.078”) X 1.275” drill.
- For Tap Sizes #8, #10, #12, M4, M5, use the 1/8” (.125”) X 1.500” drill.
- For Tap Sizes 1/4", 5/16”, M6, M7, use the 3/16” (.188”) X 2.000” drill.
- For Tap Sizes 5/16”, 3/8”, 7/16”, 1/2", M8, M10, M12, use the 1/4” (.250”) X 2.500” drill.
