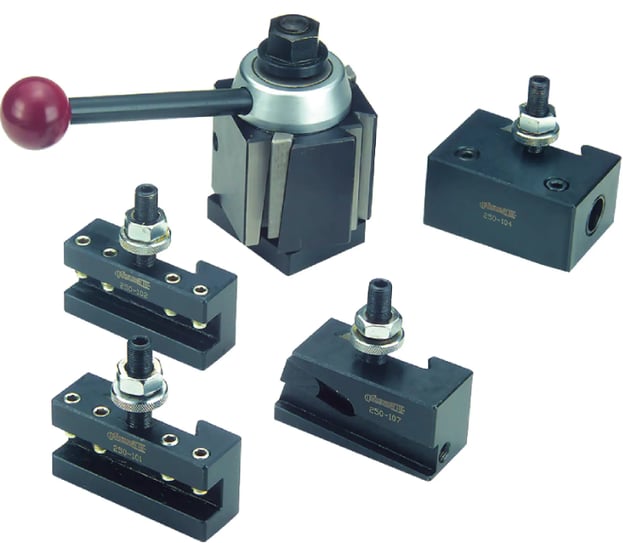

Quick-Change Tool Posts are indispensable for machining, enabling fast, precise tool changes and boosting efficiency in manual lathes and CNC turning centers. These tool posts are designed to securely hold tools, streamline tool changes, and improve machining accuracy.
KEY FEATURES OF QUICK-CHANGE TOOL POSTS:
- Fast Tool Changes: Replace tools quickly without realignment, reducing machine downtime.
- Repeatable Positioning: Pre-set tool holders ensure consistent and accurate cuts.
- Versatility: Supports various operations like turning, threading, boring, and grooving.
- Secure Locking: Prevents tool shifting and enhances stability during machining.
SIZING AND INSTALLATION TIPS:
-
Machine the T-Nut:
- The T-nut supplied with a Quick Change Tool Post is a generic fit and must be custom-machined to match your lathe’s T-slot dimensions for a stable and secure installation.
-
Understand Dovetail Compatibility:
- Dovetail connections are size-specific, meaning tool holders and posts must match (e.g., AXA holders won’t fit BXA posts). Always verify compatibility before purchasing.
-
Measure Your Lathe Swing:
- Lathe Swing is the largest diameter of work that can rotate over the bed
- Tool posts come in specific sizes (e.g., AXA (Series 100), BXA (Series 200), etc.) and must be matched to your lathe swing for optimal performance.
SELECTING THE CORRECT SIZE QUICK-CHANGE TOOL POST BASED ON LATHE SWING:
When choosing a Quick-Change Tool Post for your lathe, understanding the lathe swing is critical. The lathe swing refers to the largest diameter of work that can rotate over the bed of the lathe without interference. It is measured as the distance from the bed to the spindle centerline, multiplied by two.
WHY LATHE SWING MATTERS:
The size of the Quick-Change Tool Post must match the capacity and proportions of your lathe.
- If the tool post is too large, it may interfere with the lathe's operation or result in improper tool positioning.
- If it’s too small, it might not hold tools rigidly enough for accurate machining.
CHOOSING THE RIGHT TOOL POST SIZE:
- The correct size ensures proper tool alignment, rigidity, and compatibility.
- A mismatched tool post can lead to misalignment and improper tool positioning.
COMMON TOOL POST SIZES:
| Tool Post Size | Swing |
Common Use |
|
AXA- (Series 100) |
6" to 12" | Light-duty lathes, hobbyists and small machine shop work. |
|
BXA- (Series 200) |
10" to 15" | Medium-duty lathes, versatile for general machining tasks. |
|
CXA- (Series 300) |
13" to 18" | Heavy-duty lathes for larger parts and more demanding machining operations. |
|
CA- (Series 400) |
14" to 20" | Industrial-sized lathes, suitable for very large and heavy parts. |
|
DA- (Series 500) |
17" to 48" | Extra-large industrial lathes for oversized workpieces. |
Note: Brand-to-brand differences may exist. Always verify specifications.
KEY CONSIDERATIONS WHEN SELECTING A TOOL POST:
-
Follow Manufacturer Guidelines:
Always check the tool post manufacturer’s recommended swing ranges.
-
Ensure Proper Tool Alignment:
Ensure the selected size allows proper alignment with the lathe’s centerline for accurate machining. -
Overlapping Swing Ranges:
Some lathes might fall within the overlapping ranges of two tool post sizes. In such cases, choose based on the cutting tool dimensions and rigidity required.
