When outfitting your lathe machine with the right accessories, one of the most critical factors to consider is the lathe swing measurement. Often misunderstood, a lathe's swing capacity directly impacts the size of workpieces your lathe can handle and determines which accessories will be compatible.
Whether you are working with metal, wood, plastics, composites, or any other materials, understanding lathe swing ensures that you select the best tools, chucks, and attachments for your machine and operation.
What is lathe swing?
Lathe swing, commonly referred to as swing over bed, is the maximum diameter of a workpiece that can be mounted on a lathe without obstruction.
However, when considering workpiece fitment, it's important to account for the space occupied by chuck jaws or faceplate clamps, which may extend beyond the workpiece itself.
KEY CONSIDERATIONS:

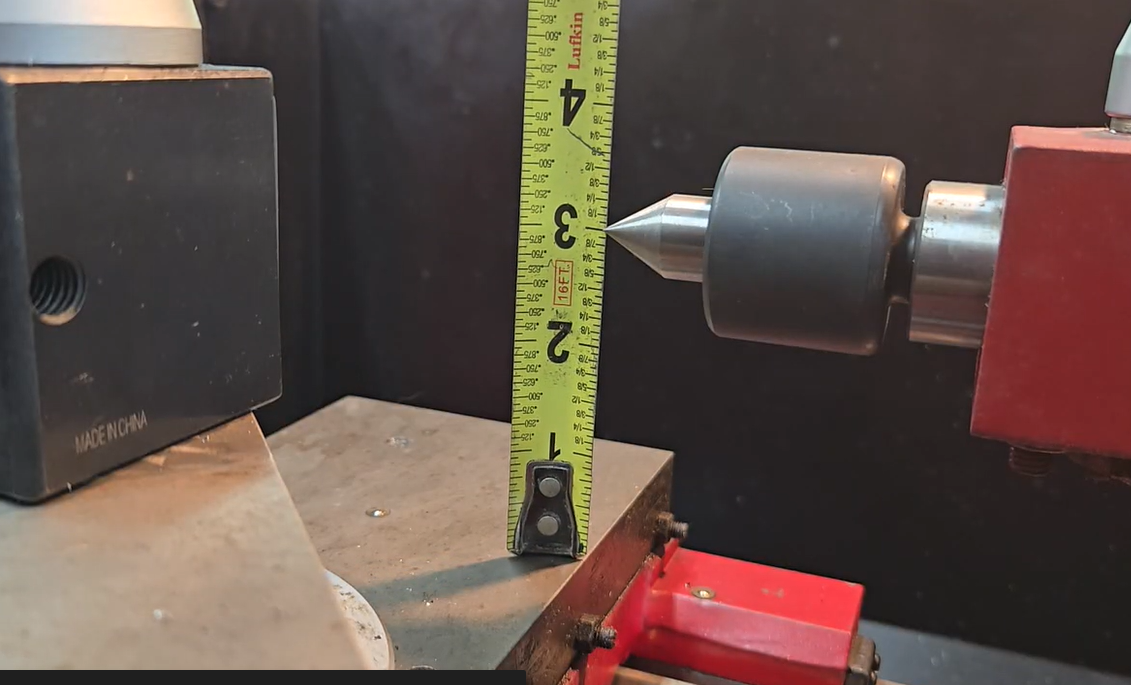

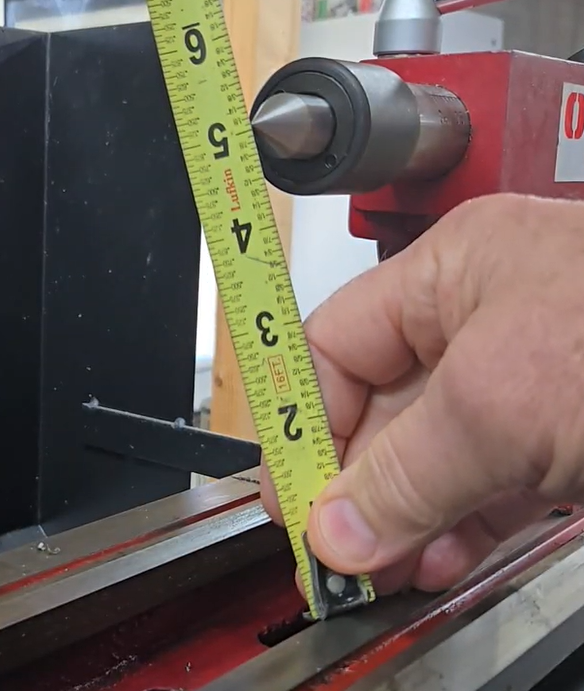

- Lathe swing is determined by measuring the distance from the center of the lathe spindle (this can be easily done using a live center) to the nearest point on the bed, then doubling that measurement.
- However, the practical working capacity may be slightly less due to protrusions —so always round down, never up.
Example:
If the spindle-to-bed distance is 6-9/16 inches, round down to 6-1/2 inches and double that number to get a 13-inch lathe swing, meaning it can accommodate lathe workpieces up to 13 inches in diameter.
This measurement is crucial when selecting lathe accessories such as:
- Chucks
- Tool posts
- Faceplates
Key Lathe Swing Measurements For Accessory Compatibility
-
Swing Over Bed –
The maximum workpiece diameter that can rotate over the lathe bed.
-
Swing Over Carriage –
The maximum lathe workpiece diameter that can rotate over the cross slide, usually less than swing over bed due to the cross-slide’s height.
-
Swing Over Gap –
Some metal lathes and wood lathes feature a removable gap in the bed, allowing for larger workpieces in that specific section.
Quick- Change tool Posts
-
A quick-change tool post enhances efficiency and minimizes vibration, improving machining precision.
-
Selecting the correct tool post depends on your lathe swing.
For a full breakdown on how to choose the best size, check out our blog on Quick Change Tool Posts.
FIND THE RIGHT TOOL POST SET:
-
To help you select the best Quick Change Tool Post Set for your lathe and applications, visit our Quick Change Tool Post Sets page.
-
Use the various filter options along the left side of the page—including:
-
Brand
-
Lathe Swing
-
And more — to narrow your search.
-

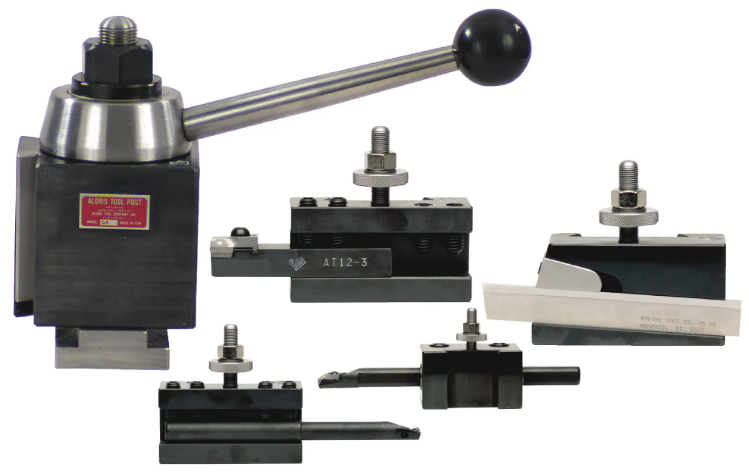

5-Piece Quick Change Tool Post Set:
Why Lathe Swing Matters When Choosing Accessories
Understanding how to correctly measure your lathe swing helps ensure that every accessory you purchase is compatible with your machine.
A mismatch can lead to:
-
Improper tool post or accessory fitting
-
Reduced performance
-
Even damage to your lathe or tools
By selecting accessories that align with your lathe’s swing capacity, you enhance:
-
Precision
-
Efficiency
-
Overall machining success
Additional Help & Recommendations
-
For more information on choosing the right lathe accessories, visit our full selection at Travers.com.
-
If you need lathe accessory recommendations or have questions about lathe swing calculations, you can always contact us at tech@travers.com.
